Dashboard Guide

import { Aside } from ‘@astrojs/starlight/components’;

GreenKube includes a modern web dashboard built with SvelteKit and ECharts, served directly by the FastAPI backend. No additional deployment required — it ships inside the same container.

Accessing the Dashboard

After deploying GreenKube, access the dashboard via port-forward:

kubectl port-forward svc/greenkube-api 8000:8000 -n greenkube

Then open http://localhost:8000 in your browser.

For production access, configure an **Ingress** resource or set the service type to **LoadBalancer** in your Helm values.

Dashboard Pages

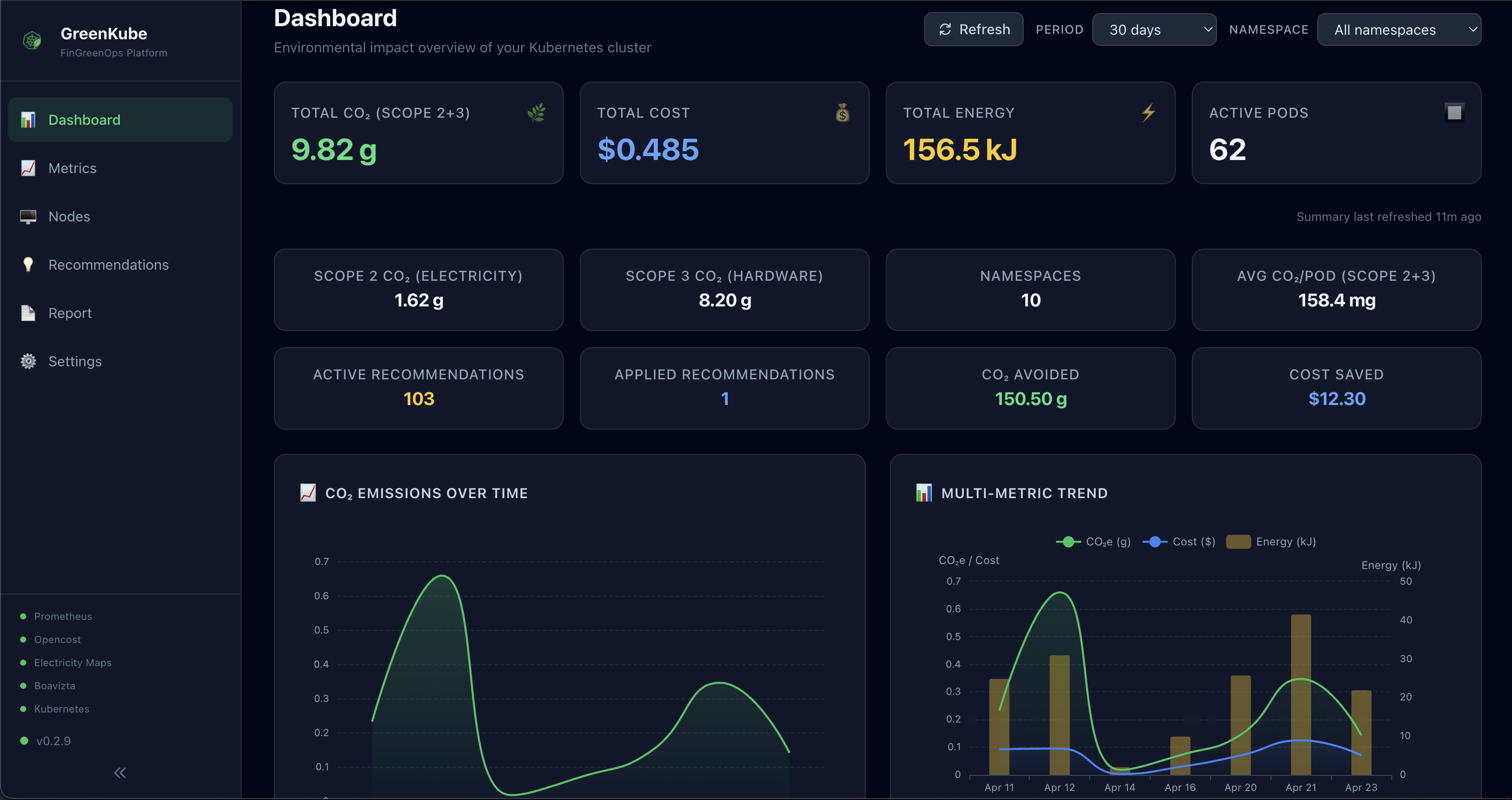

📊 Dashboard (Home)

The main dashboard provides a high-level overview of your cluster’s environmental and financial impact:

KPI Cards:

• Total CO₂e — Combined modeled operational and embodied estimate
• Total Cost — Combined cost from OpenCost data
• Total Energy — Energy consumption in kWh
• Active Pods — Number of monitored pods
• Sustainability Score — 0–100 composite score across 7 dimensions

Charts:

• Time-series chart — CO₂ emissions and cost trends over time (ECharts)
• Namespace breakdown — Pie chart showing emission distribution by namespace
• Top pods — Bar chart of highest-emitting and most expensive pods

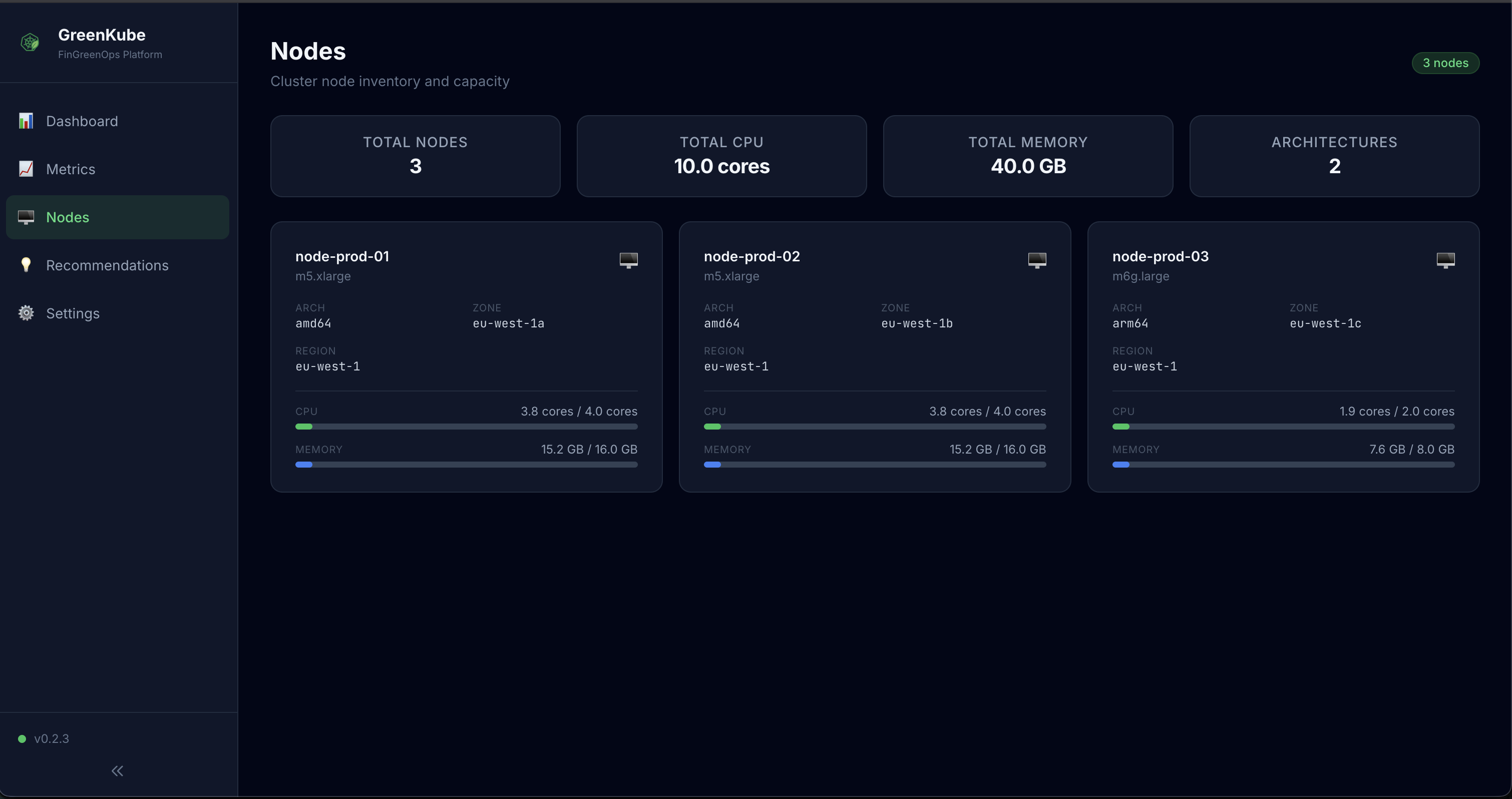

️ Nodes

The node inventory page displays all cluster nodes with:

• CPU/Memory capacity and allocatable values with comparison bars
• Instance type — Cloud provider instance type (e.g., m5.xlarge)
• Zone and region — Kubernetes node location labels, when available
• Architecture and OS — Node architecture (for example, amd64 or arm64) and operating system
• Hardware profile — CPU name, TDP, or GPU count when reported by the hardware data source

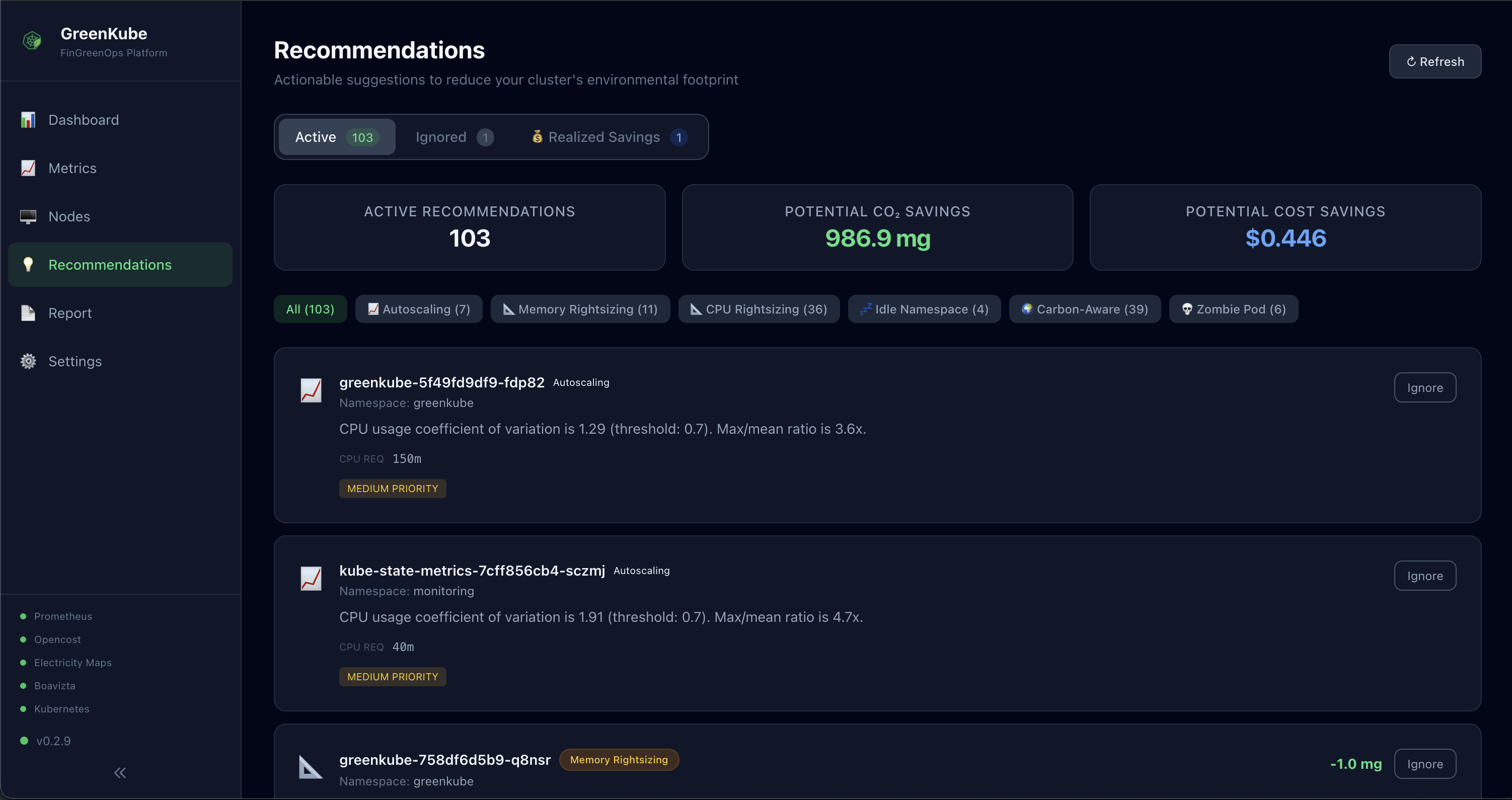

💡 Recommendations

Optimization suggestions organized by type and lifecycle status:

Recommendation Types: Zombie Pod, CPU/Memory Rightsizing, Autoscaling Candidate, Carbon-Aware Scheduling, Idle Namespace, Off-Peak Scaling, Overprovisioned Node, Underutilized Node, Orphaned PersistentVolume, Orphaned LoadBalancer

Tabs: Active, Ignored, Realized Savings, and Pull Requests

Each recommendation includes:

• Priority (high, medium, low)
• Scope (pod, workload, namespace, node, cluster)
• Projected annual savings where supported by the recommendation type
• Ignore flow with an optional reason
• Restore action from the Ignored tab
• Applied recommendations summarized in the Realized Savings tab
• Eligible workload CPU and memory rightsizing recommendations can be previewed as manifest changes and submitted through the GitOps pull-request workflow when configured.

The GitOps workflow creates a pull request; it does not directly apply changes to the cluster. The separate API lifecycle endpoint can mark a recommendation as applied for savings tracking.

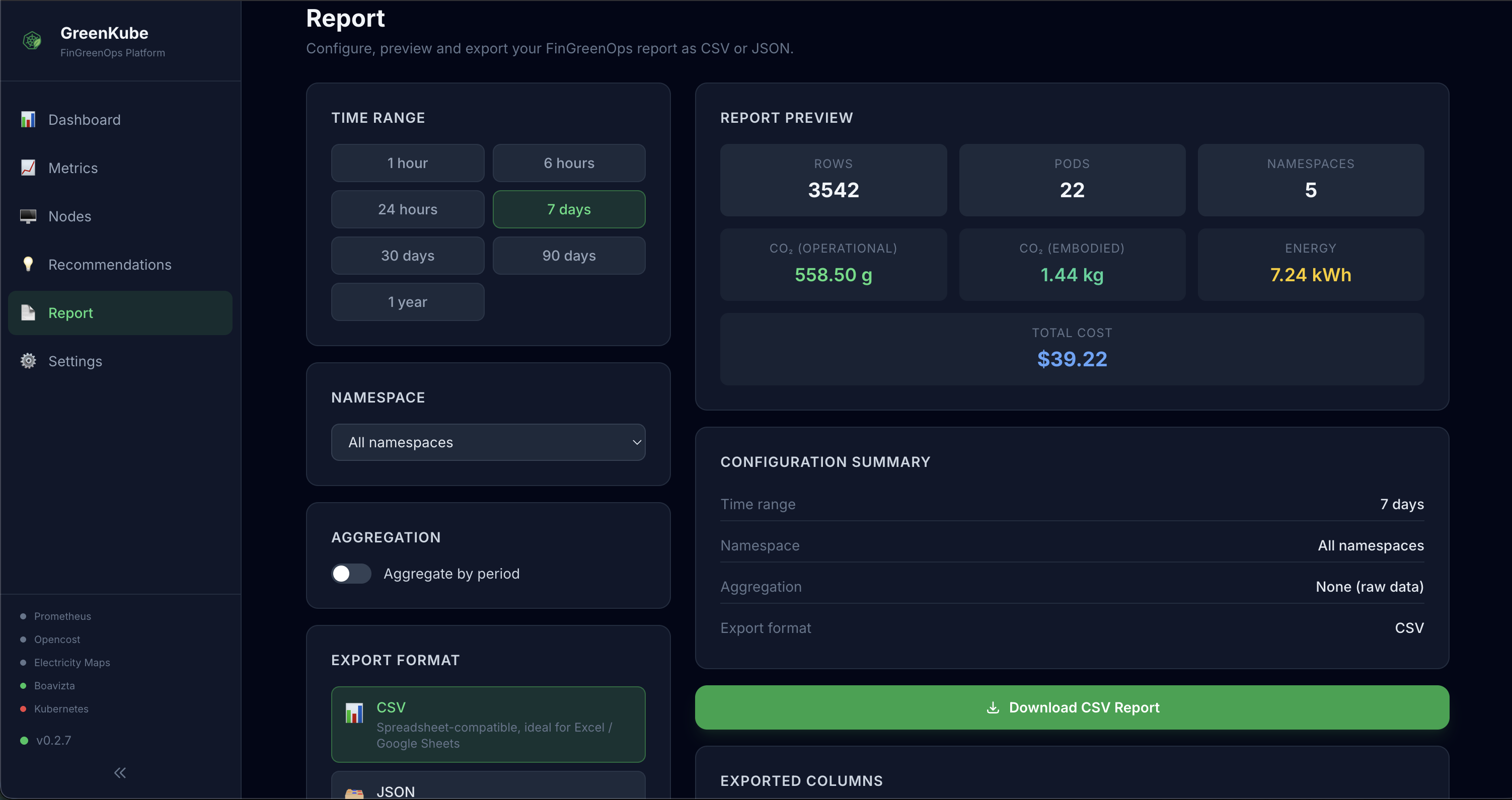

📋 Report

Visual report builder for cost and estimated carbon exports:

• Time range picker — relative window (1h → ytd), custom start/end dates, or a full calendar year
• Namespace filter — scope to a specific team/environment
• Granularity — hourly, daily, weekly, monthly, yearly
• Preview — row count and totals before downloading
• Export — direct browser download to CSV or JSON

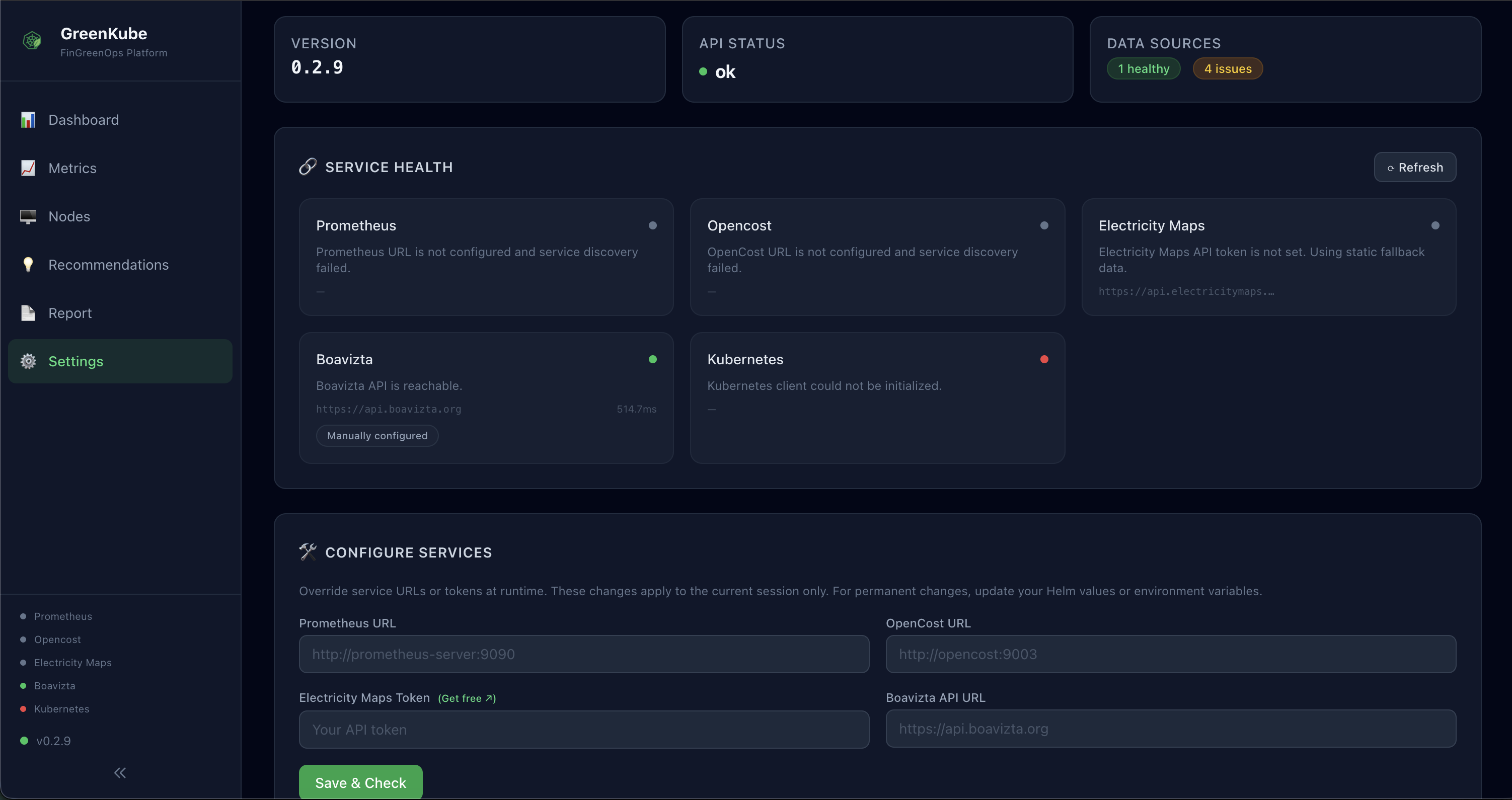

⚙️ Settings

System configuration and health status:

• Service Health — Popup-style health check for all data sources (Prometheus, OpenCost, Electricity Maps, Wattnet, Boavizta, Kubernetes, Database) with icons and last-checked timestamps. Inactive electricity providers (e.g. Electricity Maps when Wattnet is selected) are excluded from the overall status.
• Version — Current GreenKube version
• Configuration — Runtime settings for integration URLs (including Prometheus, OpenCost, and Boavizta), cloud provider, default zone, and electricity provider (Electricity Maps or Wattnet). Changes apply at runtime; persistence to a Kubernetes Secret is best-effort and depends on deployment permissions. API-key authentication is configured through Helm values or environment variables rather than this dashboard form; see the Configuration Reference.

Dashboard Features

Theme Support

The dashboard supports both light and dark modes, detected automatically from your system preferences.

Responsive Design

Fully responsive layout that works on:

• Desktop monitors
• Tablets
• Mobile phones

Data Export

The Report page provides CSV and JSON downloads for the selected time range, namespace, aggregation, and grouping options.

Data Refresh

The dashboard loads data for the selected time window and provides a manual Refresh action for dashboard summaries. Values update as collection and summary-refresh jobs run; the web UI does not use a WebSocket stream or continuous client-side polling.
