Prometheus & Grafana
GreenKube works with Prometheus in both directions:
| Direction | What it does | Required? |
|---|---|---|
| GreenKube → Prometheus | GreenKube queries your Prometheus for CPU, memory, restarts and load drivers: the evidence behind recommendations and measurements | Strongly recommended |
| Prometheus → GreenKube | Prometheus scrapes GreenKube’s /prometheus/metrics for GreenKube’s own health (collection, loops, scans, measurement, ledger) and the savings ledger counters, for alerts and the operations dashboard | Optional |
Footprint data is not exported to Prometheus. Cost, CO₂e and energy per pod, namespace and node would multiply the series Prometheus stores. Read them in the Footprint pages, GET /api/v1/report/summary, GET /api/v1/report/export (CSV or JSON) and GET /api/v1/nodes.
Scraping GreenKube
Section titled “Scraping GreenKube”With the Prometheus Operator (kube-prometheus-stack):
monitoring: serviceMonitor: enabled: true namespace: "" # empty: the release namespace, next to the scrape token Secret interval: 30s prometheusRule: enabled: true # alerts, see Alerts & SLOsThe ServiceMonitors scrape the API (port 8000) and the controller (port 9102) with bearer-token authentication, using the generated metrics:read scrape token GREENKUBE_METRICS_TOKEN. Prometheus Operator reads that Secret in the ServiceMonitor’s own namespace; when you set monitoring.serviceMonitor.namespace elsewhere, the chart keeps a copy there (<release>-scrape-token). Make sure Prometheus selects the namespace.
Without the Operator, add scrape jobs for greenkube-api.greenkube.svc:8000 and greenkube-controller-metrics.greenkube.svc:9102 at /prometheus/metrics, with a bearer token holding a metrics:read key.
Metrics
Section titled “Metrics”The API serves seven families:
| Metric | Meaning |
|---|---|
greenkube_last_collection_timestamp_seconds | Unix time of the newest stored metric row; time() - it grows while collection is stalled |
greenkube_metrics_total | Pods with a stored metric row in the last 20 minutes |
greenkube_co2e_savings_attributed_grams_total, greenkube_cost_savings_attributed_dollars_total | Counters: CO₂e and cost accrued in the savings ledger, by recommendation_type and method (projected, measured, user_declared) |
greenkube_co2e_savings_reversed_grams_total, greenkube_cost_savings_reversed_dollars_total | Counters of reversals. Net savings = attributed − reversed |
greenkube_savings_measured_vs_projected_ratio | Share of net accrued CO₂e savings that is measured rather than projected (0–1) |
The savings of a window are increase() of the attributed counter minus increase() of the reversed counter, filtered on method: never add methods together. Only measured is realized savings.
The controller serves the control-loop families with bounded labels only: collection (watermark lag, coverage, gap and degraded windows, cluster identity), loops (greenkube_loop_*, greenkube_controller_leader), recommendation scans and source failures, verification outcomes, ledger integrity (greenkube_ledger_chain_ok, greenkube_ledger_chain_head_seq, greenkube_ledger_chain_head_keyed, reconciliation, write errors), GitOps and automation. No family has a pod or workload label of its own. The full list is in docs/prometheus-grafana.md and docs/observability-slos.md.
Prometheus is for alerting and trends; the persisted runs, measurements and the savings ledger remain the source of truth.
Grafana dashboard: GreenKube Operations
Section titled “Grafana dashboard: GreenKube Operations”GreenKube Operations (dashboards/greenkube-operations.json in the repository, published on Grafana.com as dashboard 25377) shows the health of a GreenKube install and the savings it has proven. It needs Grafana 10 or later, a Prometheus data source, the API and controller ServiceMonitors, and no plugin.
| Row | What it shows |
|---|---|
| About GreenKube | What GreenKube does, with links to the docs and the source |
| Collection | Age of the newest stored row, watermark lag and coverage per source, abandoned and degraded windows |
| Loops and scans | Active controller, consecutive failures and time since last success per loop, time since the last successful scan, scans by status, failures by recommendation source |
| Measurement and ledger | Measurement loop age, ledger hash chain and reconciliation status, projection backlog, ledger write and verification errors |
| Savings (ledger v2) | Net cost and CO₂e accrued by method (attributed − reversed) and the measured share |
| Automation | Backlog of plan operations, plans and webhook deliveries by queue and state |
Variables: Prometheus (the data source), Namespace (the release namespace, a target label that scopes every panel) and Cluster (CLUSTER_NAME, carried only by the API families). Controller panels are titled (all clusters). The savings panels take max per series before summing, because every API replica serves the same counters.
Import: Dashboards → New → Import → enter 25377 (or upload greenkube-operations.json) → select your Prometheus data source. When importing through the HTTP API, use /api/dashboards/import (not /api/dashboards/db): only the import endpoint resolves the ${DS_PROMETHEUS} input. The JSON has no fixed uid.
Upgrading from the GreenKube FinGreenOps dashboard

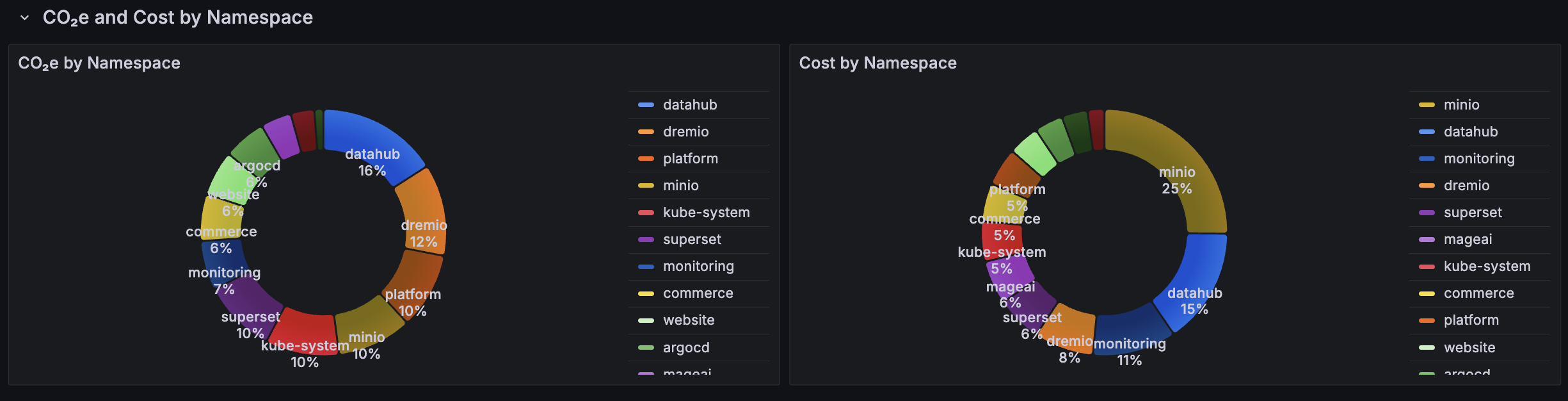

The former large dashboard (dashboards/greenkube-grafana.json, uid greenkube-fingreenops) is removed together with the per-pod footprint series and the sustainability score it read, and its panels show “No data” after the upgrade. GreenKube Operations is the new revision of the same Grafana.com listing (25377): import it and delete the old dashboard. The Business Charts plugin is no longer needed. See Upgrading.
Troubleshooting
Section titled “Troubleshooting”| Symptom | Check |
|---|---|
| No GreenKube target in Prometheus | The ServiceMonitor’s namespace is selected by Prometheus, and its token Secret exists there (secret not found in the operator logs). The greenkube-api and greenkube-controller-metrics targets must be UP |
| ”Datasource is not set” in every panel | The dashboard was imported through /api/dashboards/db; re-import through the import endpoint |
Unexpected cluster label | Set config.clusterName to a stable name |
| Savings panels empty | Normal until the first ledger accrual; collection panels fill after the first collection (5 minutes at most) |
